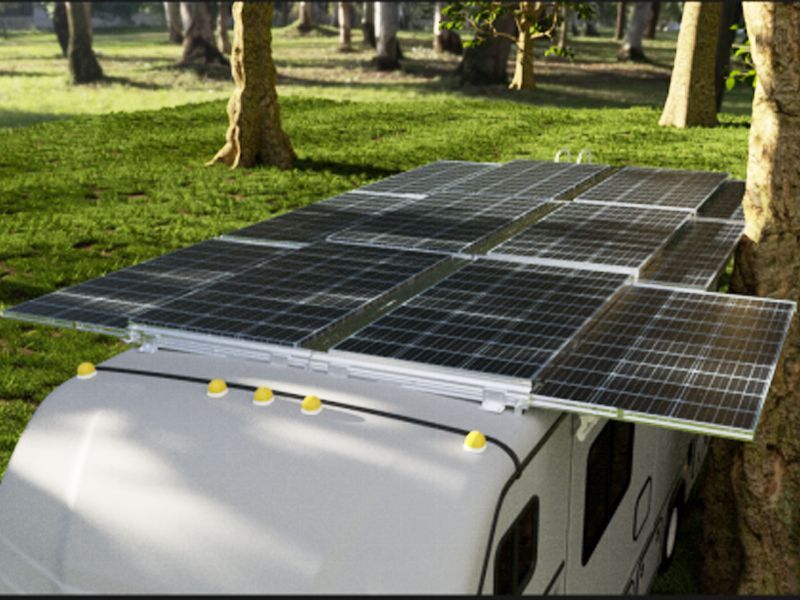

Rv Solar Retractable System
Double power generation capacity per unit area
PACKING LIST：

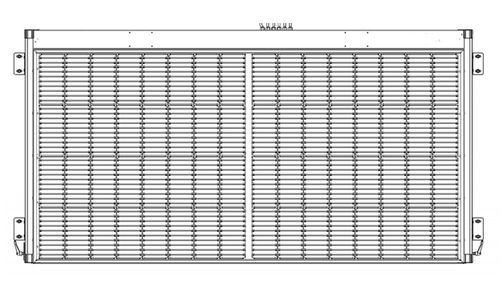

Electric expansion of photovoltaic panel power generation system 1

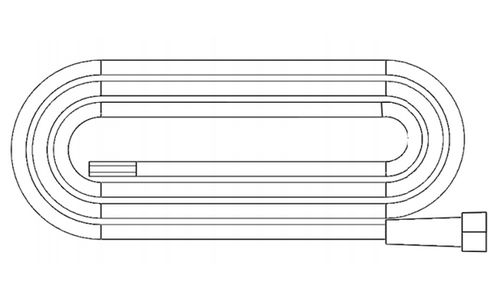

Power line 1
Wind speed sensor connection cable 1

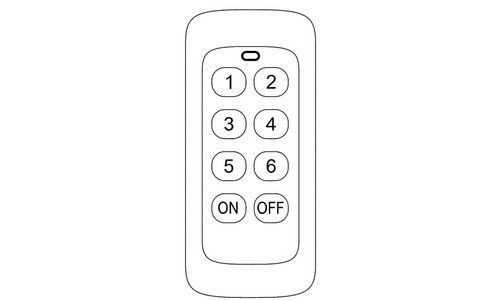

Remote controls 1

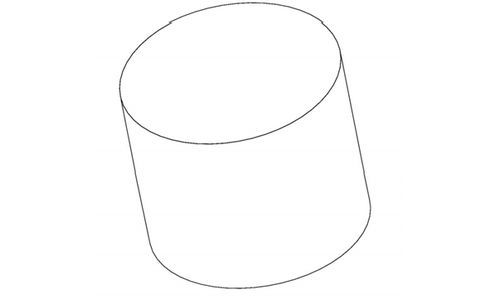

Codemagnet 1

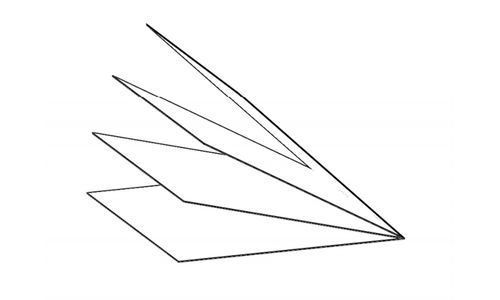

Manual 1

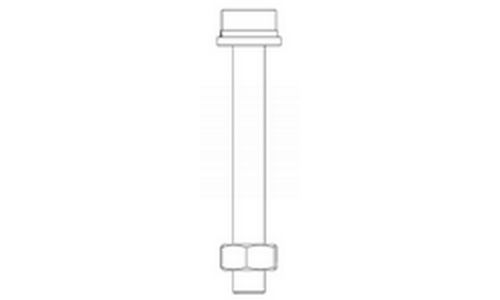

Mounting screws and nuts 8

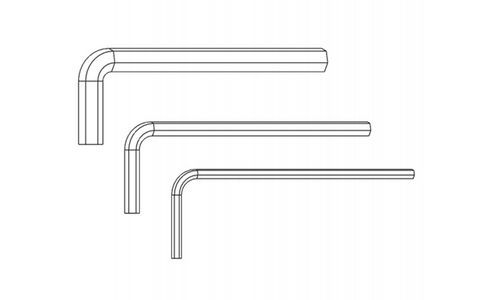

Hexagon socket spanner 3-------M5*1/M4*1/M2*1

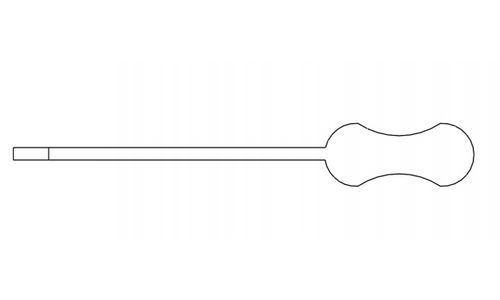

One screwdriver 1
FEATURE
This is a short title

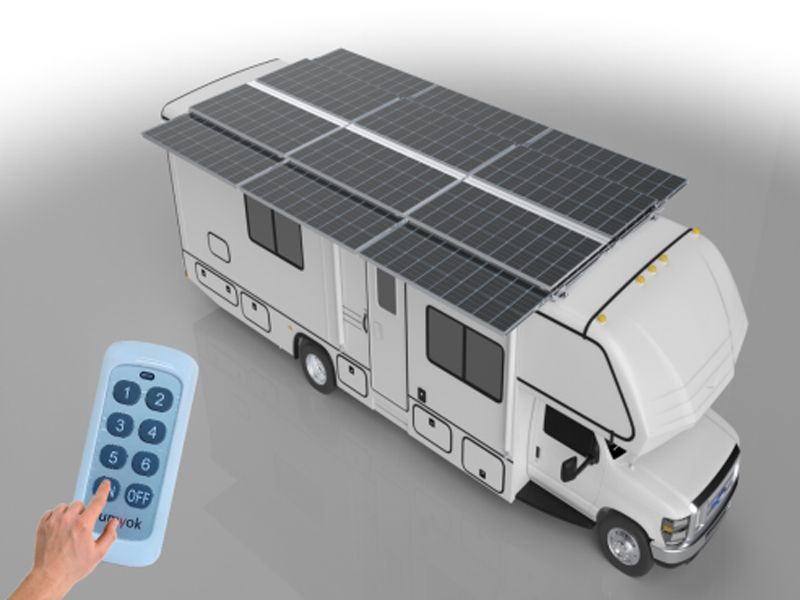

1、Remote control:
one remote control can control one or more systems
This is a short title

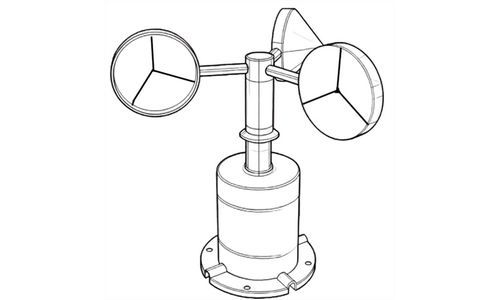

2、Automatically retracts when wind speed exceeds 17 meters per second, ensuring safety for outdoor use (optional feature)
This is a short title
3、Stop when encountering obstacles, adapt to various usage scenarios
This is a short title

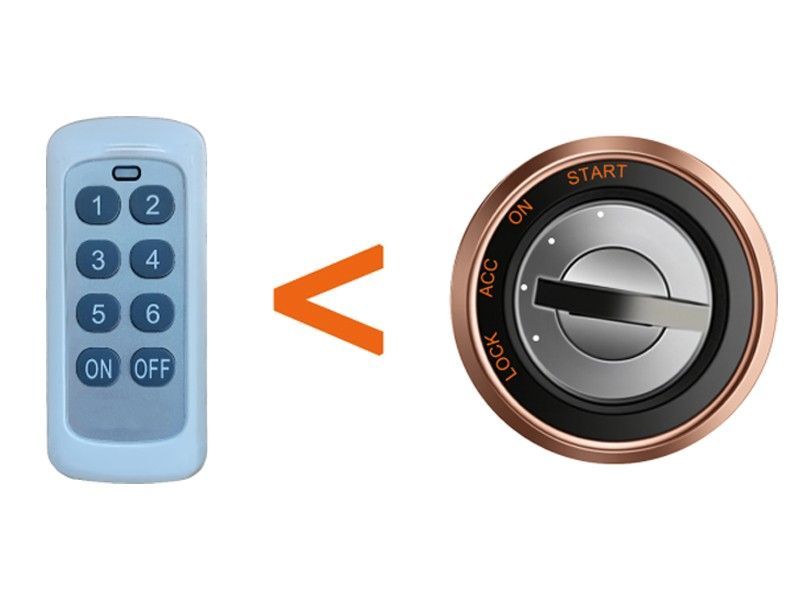

4、ACC mode, intelligent settings; ensures that the vehicle is always retracted during driving
This is a short title

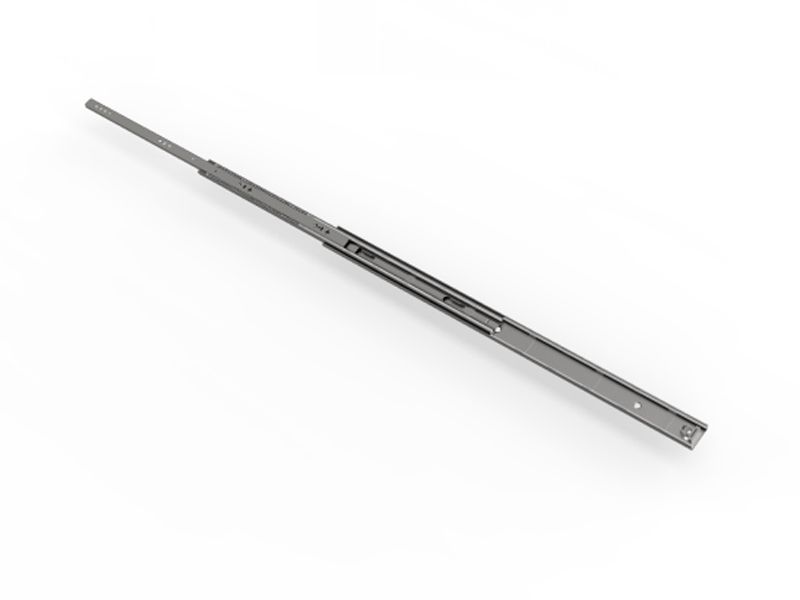

5、The non ball slide rail is designed to prevent jamming caused by rust and dust in
severe weather (rain, snow, sandstorms, etc.)
This is a short title

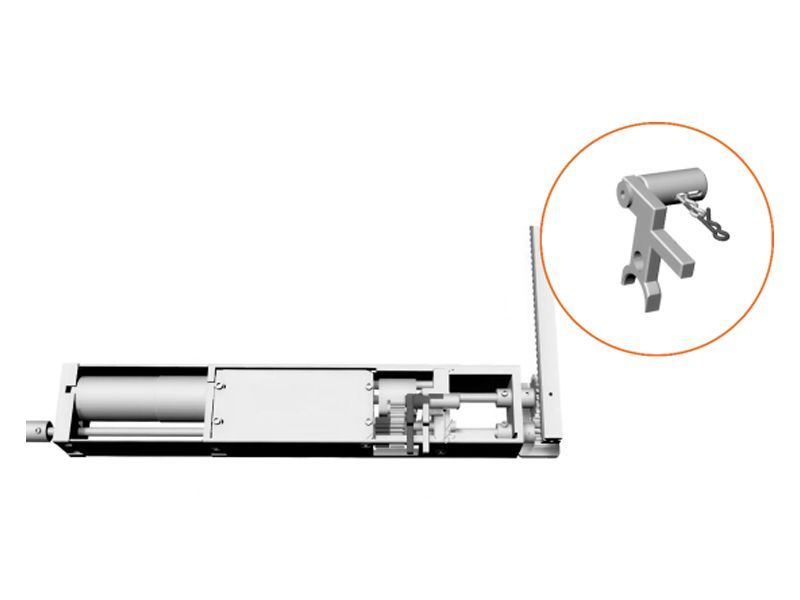

6、In case of failure, it can be switched to manual mode to take you home no matter what
INSTALLATION
1. Corner bracket installation: Unscrew the 4 stainless stee corner brackets that have been fixed on ,remove and turn the square 180 degrees , and then fix it on the profile again. Please see the details as followings:
2. Product installation: After the installation of the corner bracket, then make the installation hole correctly on the basis of corner bracket hole distance and spacing. and then fix the product on the RV roof with bolts and nuts and in the meantime to seal off the screw rounding with waterproof silicone to prevent water leakage, The specific operation method is as follows：
